Raintech Culvert Corrugated Plate Roll forming Machine High Efficient

Phone: +8618668962766
Whatsapp: +8618668962766
Email: sales@rollformingindustry.com
Get a quote

Culvert Corrugated Board Roll forming Machine

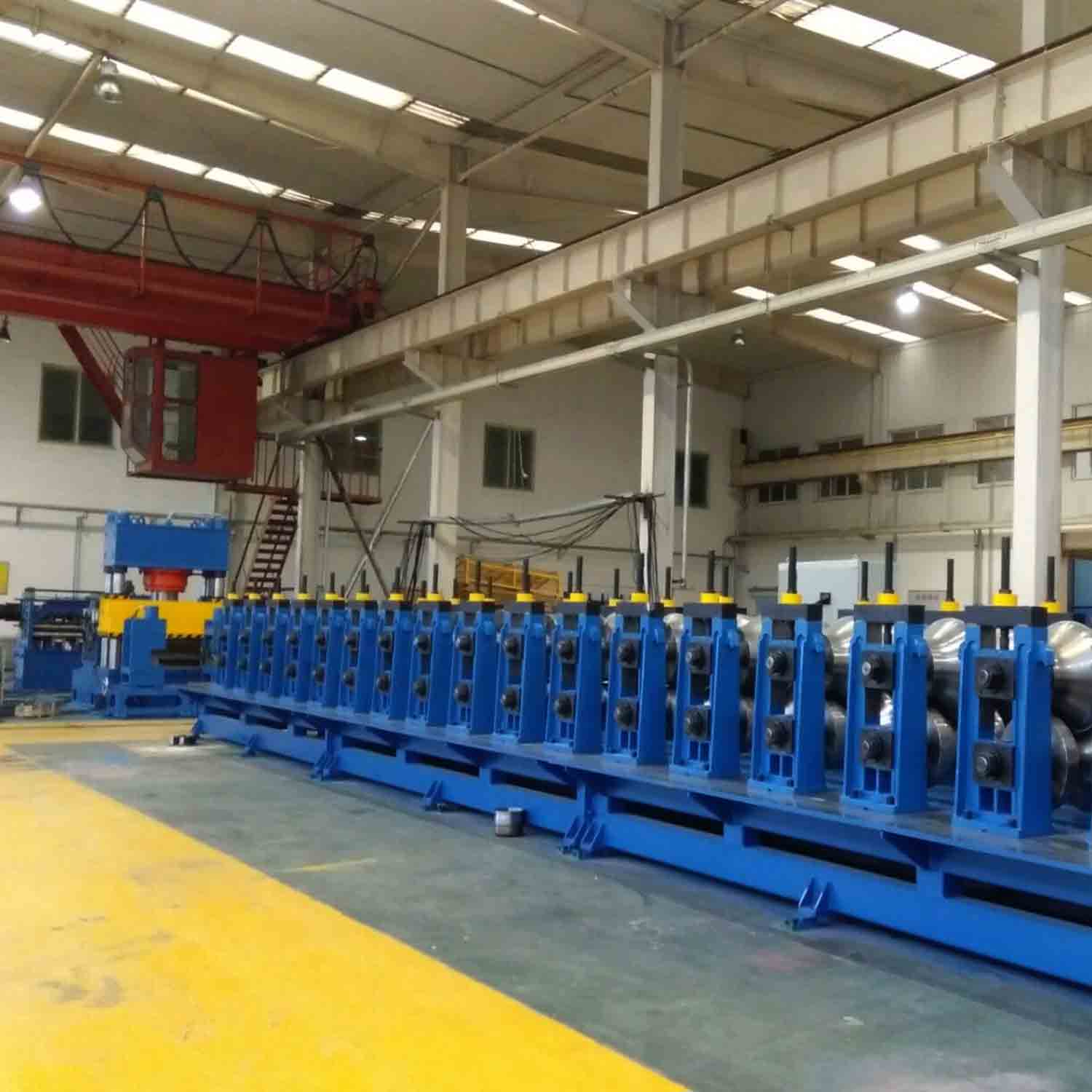

The production line is a fully automated production line integrating uncoiling, leveling, punching, cold bending forming, bending arc, cutting and integration of production equipment with a variety of technologies, such as uncoiling/steering, forming, cutting, automatic feeding, stamping, automatic receiving, off-line bending and arcing. The whole production line is composed of unwinding/drawing system, forming system, automatic conveying/positioning system, punching system, automatic receiving system, arc bending system, electrical control system, etc.

Corrugated Steel Plate Roll Forming Machine for Bridge

MACHINE COMPONENTS

No	Items Name	Specifications
1	Auto Decoiler	Single head mode, single support Coil ID: Ф610 Coil OD: Ф1500mm Strips width: 1700 mm Max. weight: ≤20000 kg
2	Leveling Machine	Max. Working Speed: 15m/min Max. Strips width: 1700 mm Max. Material thickness: 8mm Motor Power: About 30kw
3	Shear butt welding device	The frame is a profile + steel plate welding structure, hydraulic shearing, hydraulic pressing, and pressing platform
4	Servo Feeding	1. Maximum feeding speed: 15m/min 2. The maximum allowable feeding width: ≤1700mm 3. Allowable feeding thickness: ≤8mm 4. Single feeding error: ≤±1mm (the tolerance is not cumulative) 5. Servo motor power: ≈15Kw (subject to the final design) 6. The material of the feeding roller is: 9Cr2Mo (or GCr15), hardness HRC55-60
	Punching Press	Adopt liquid four-column press mode Punching Press: 500T Hole Size:15-φ25

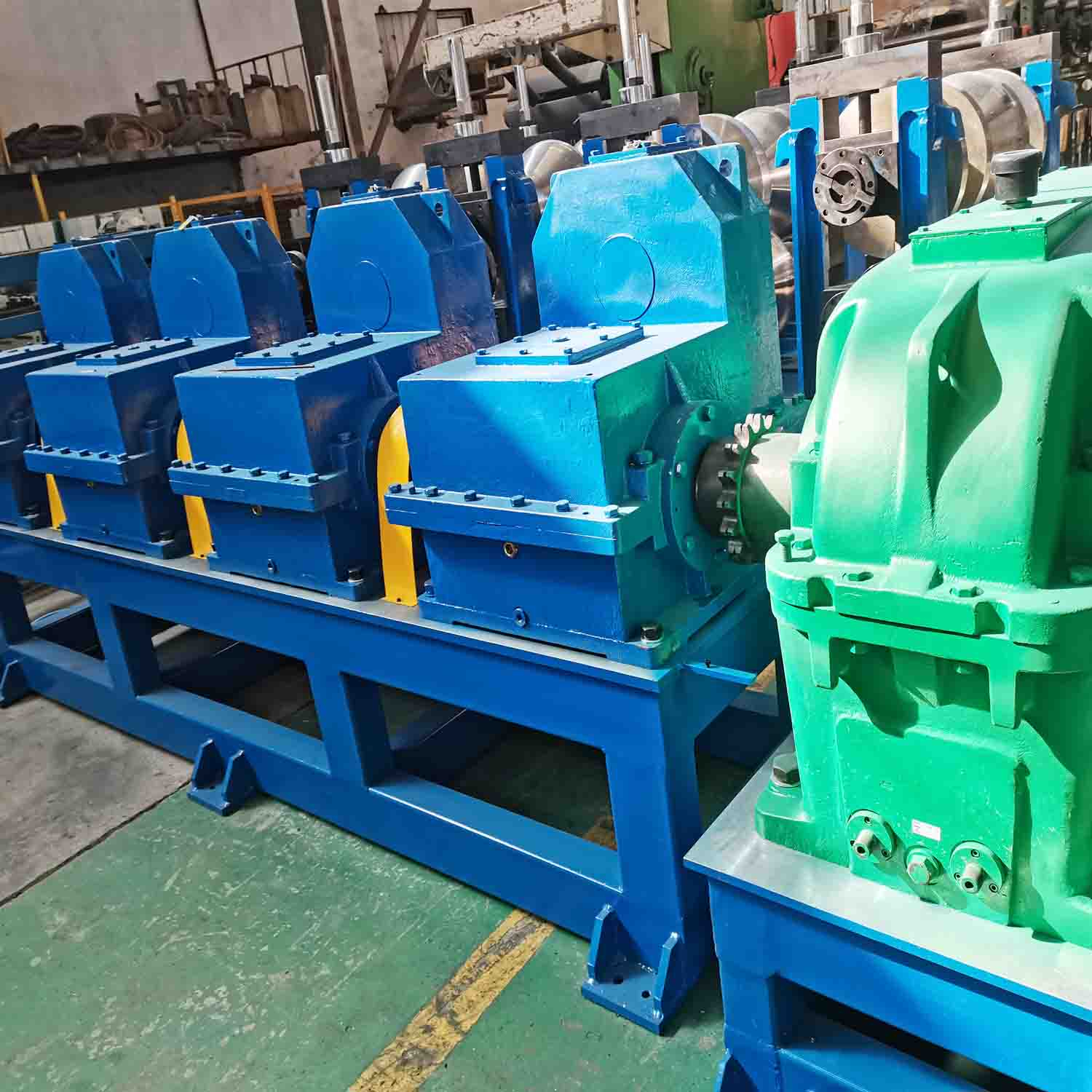

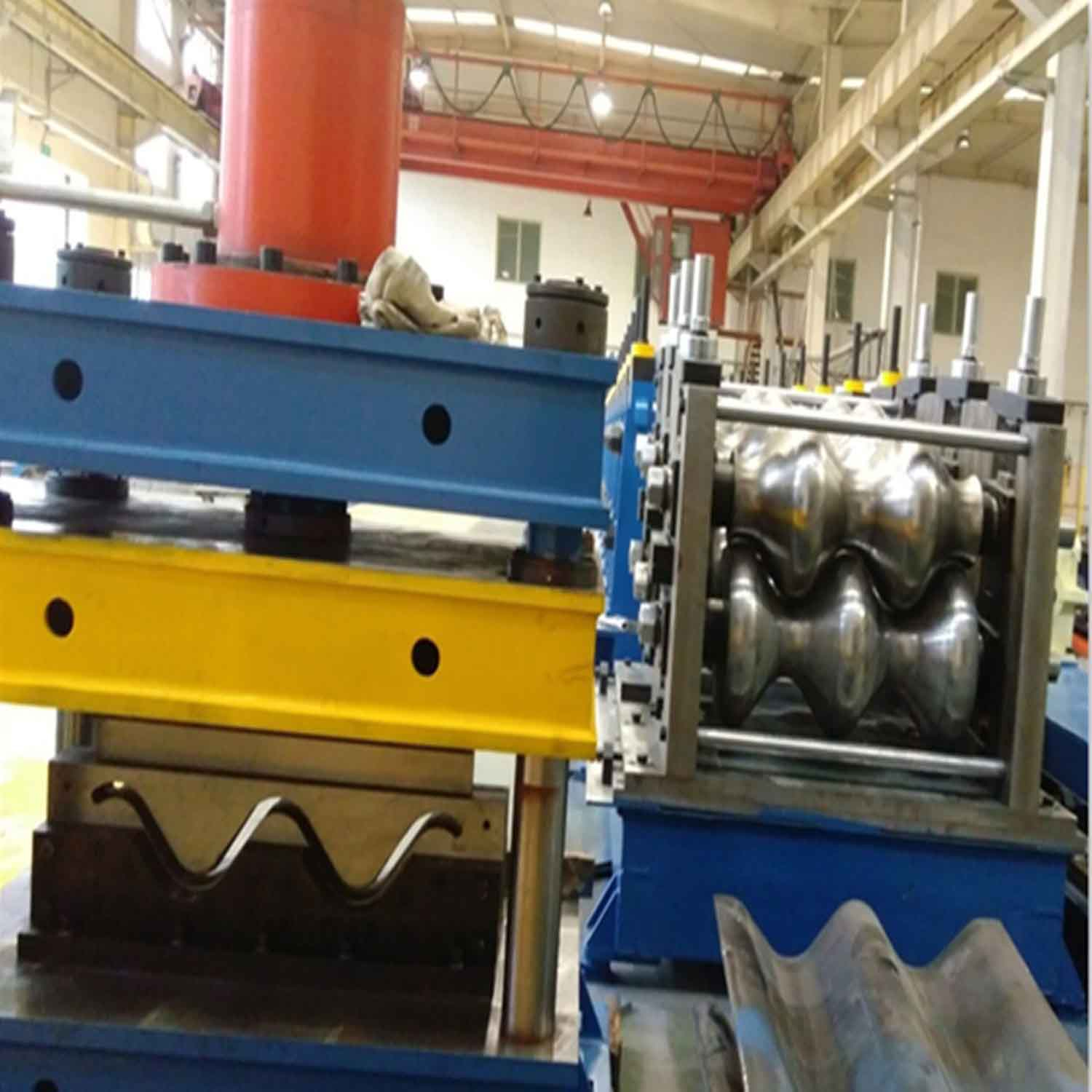

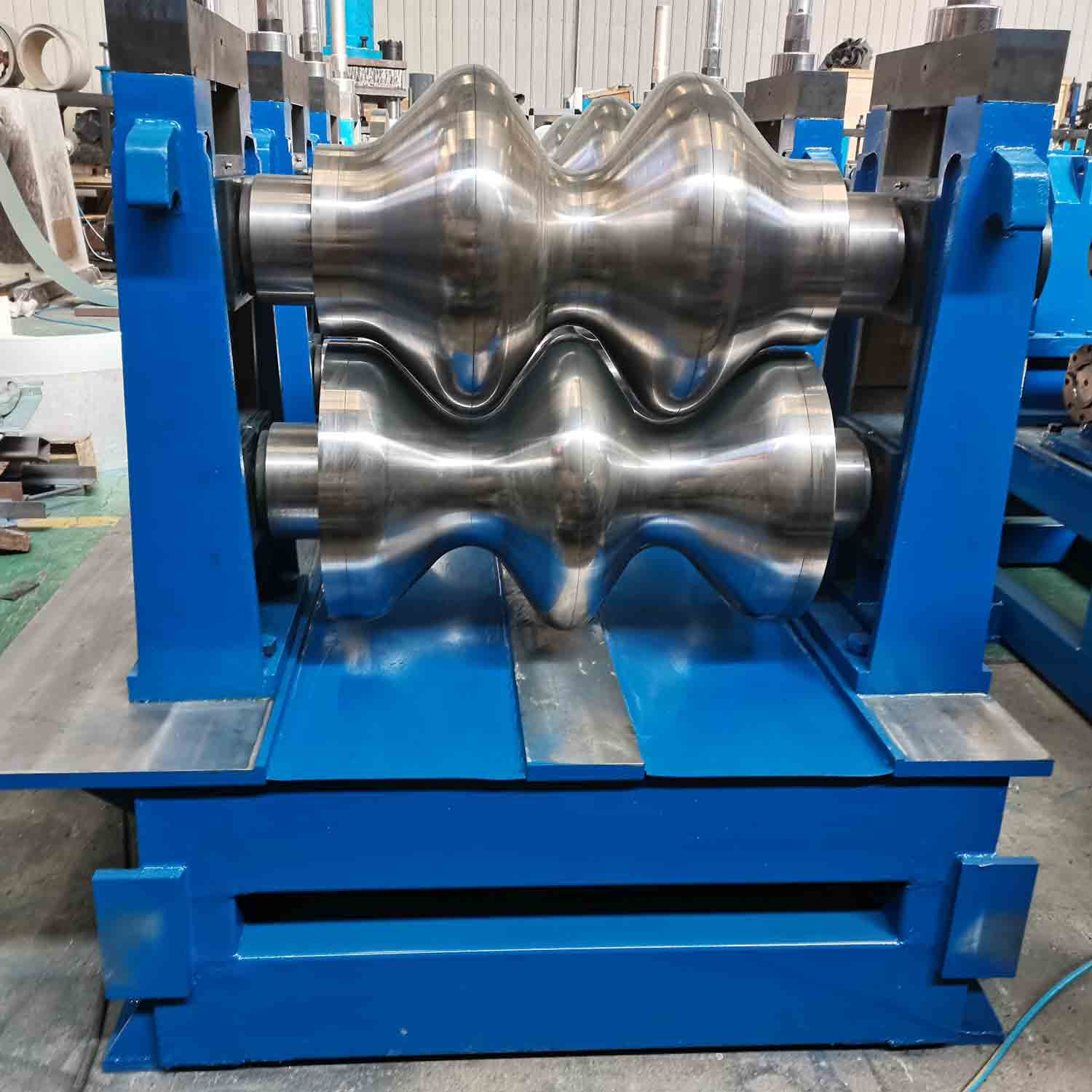

5	Roll Forming Machine	Structure: the forming unit is driven by motor reducer chain Forming stations:24 stations Forming machine shaft dia:φ180mm Motor power: 180kw Max.: 2-8m/min

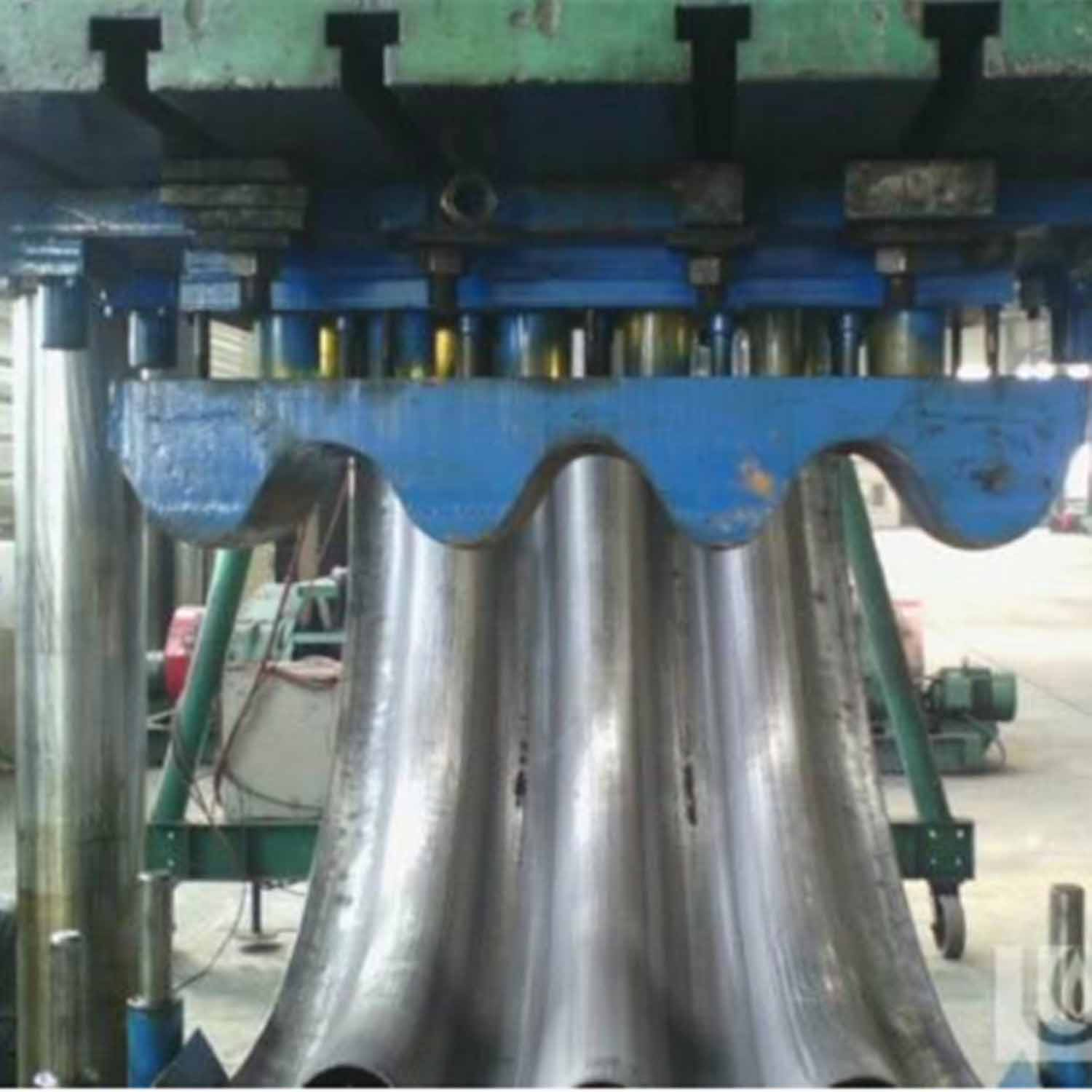

6	Hydraulic Cutting	The cutter mode adopts blanking shearing Blade material :Cr12MoV (hardness after quenching HRC58~62) Parameter :cutting accuracy:±1.5mm
7	Electrical Control Cabinet	Main electrical components: PLC: Mitsubishi Inverter: delta Touch screen: veron (Taiwan, China) Low-voltage electrical appliances: schneider (France) Encoder: Omron (Japan)
8	Hydraulic System	Hydraulic system USES filter, the cleanliness of oil to ensure 6-8 grade

Material: Hot rolled steel plate
Yield strength of raw materials: ≤345Mpa
Tensile strength of raw materials: ≤550Mpa
Coiling material outside diameter: ≤Ф1500 mm
Inner diameter of coil: Ф610
Width of steel belt: ≤1645mm
Thickness of steel belt: 4~8mm
Single roll weight: ≤20000 kg

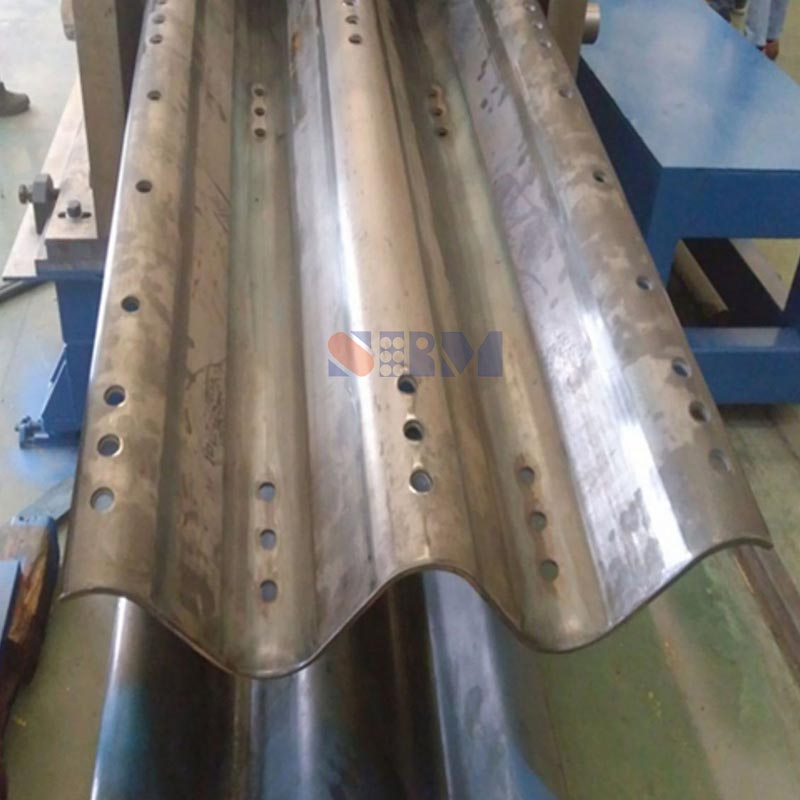

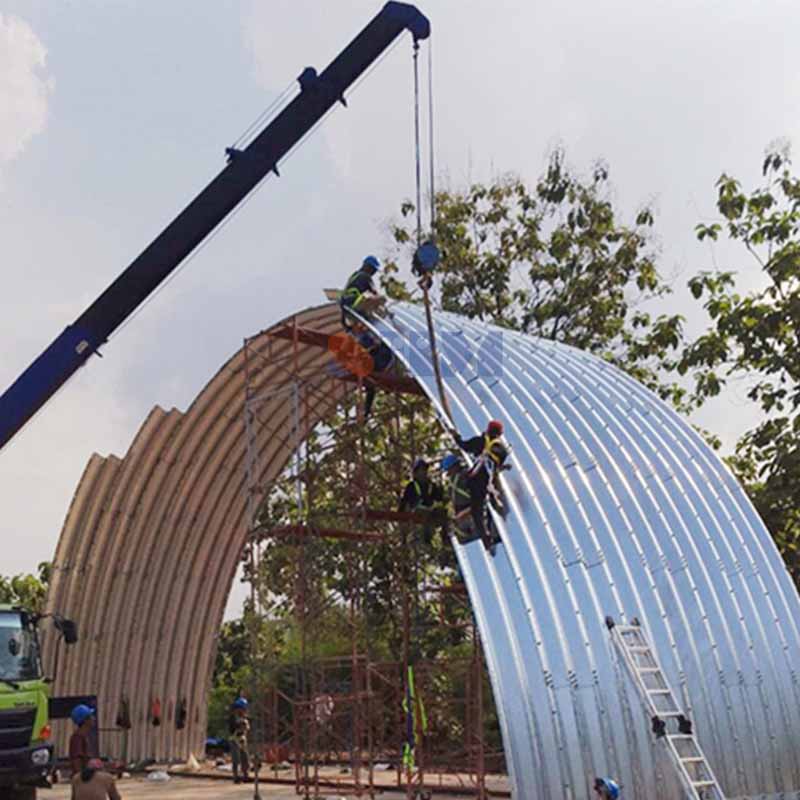

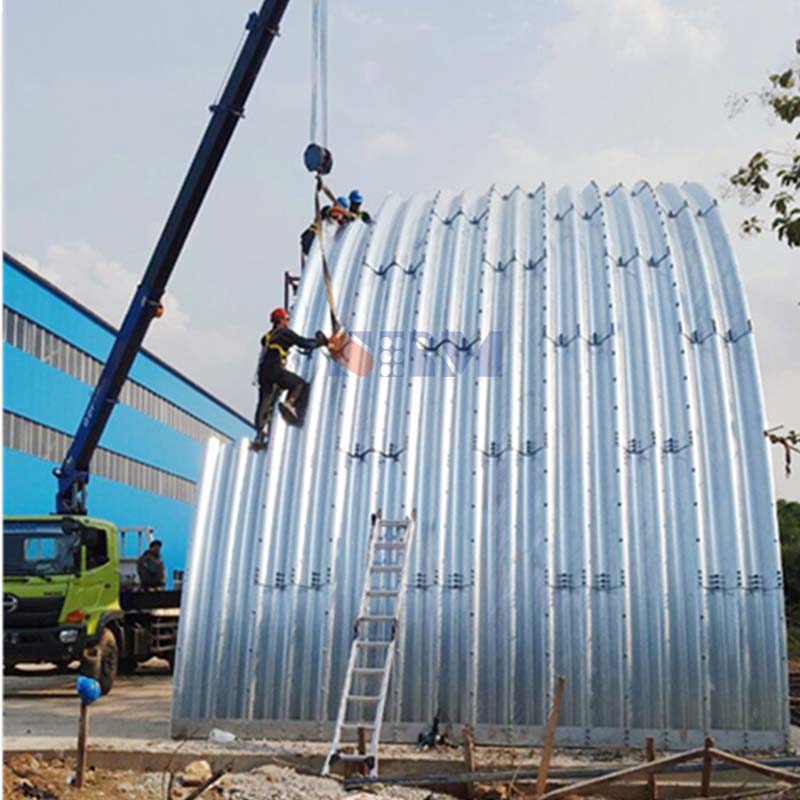

Workpiece Show

Metal decking is corrugated metal sheeting that's used as a structural roof deck or composite floor deck. It will be supported by steel beams or joists The purpose of metal deck is to support the insulating membrane of a roof or to support and bond with the concrete to create a composite metal floor deck.
