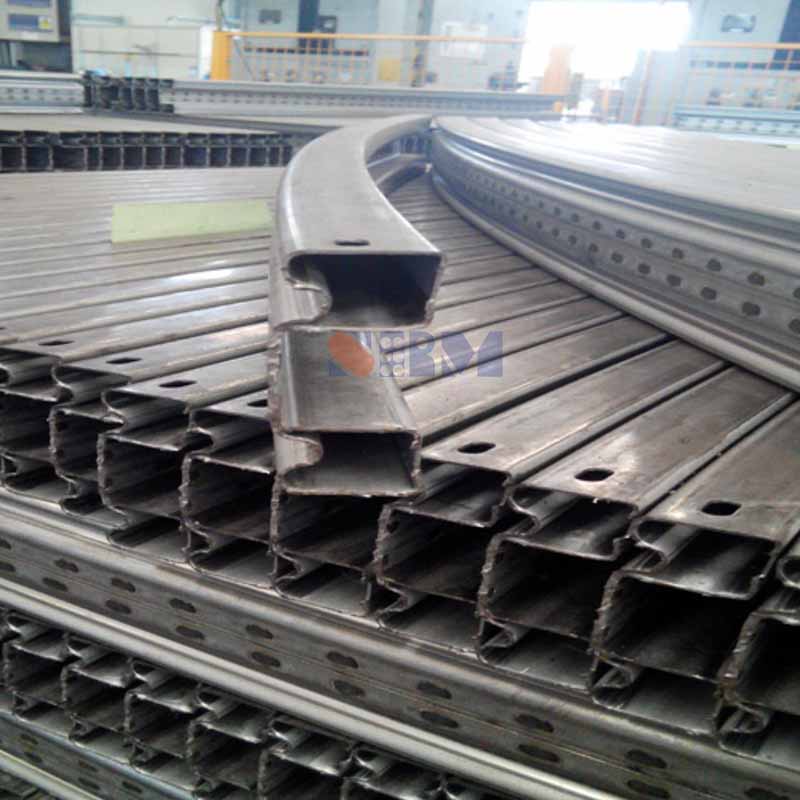

High quality Bumper beam roll forming machine for Car bumper beam

36 Stations Bumper Beam Roll Forming Machine for Car Bumper Beam

Production process flow:

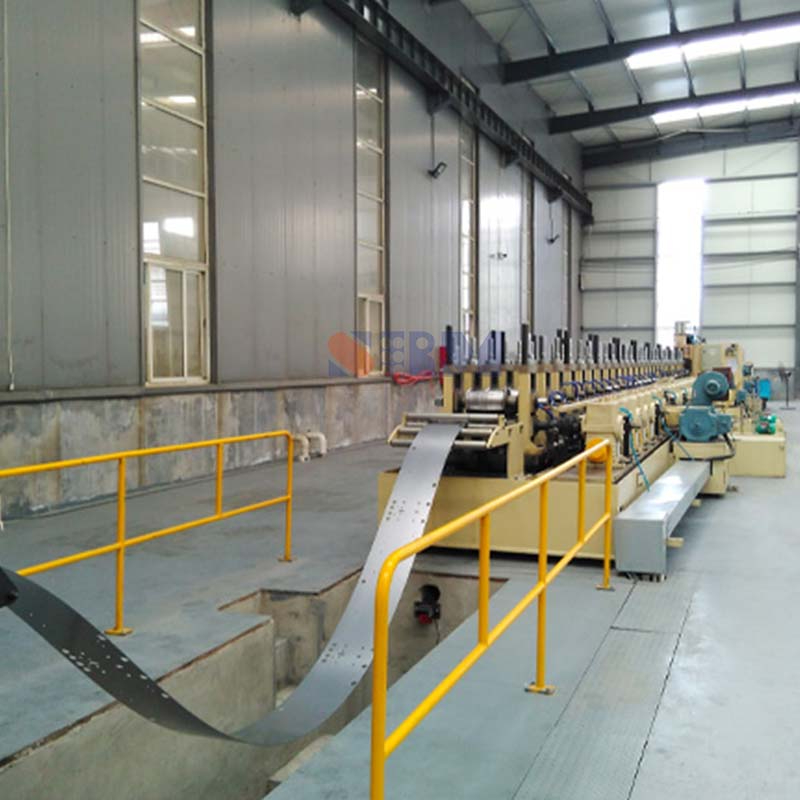

Uncoiling-leveling-servo feeding-on-line punching (various pass types)-cold forming-on-line welding-tracking and cutting.

36 Stations Bumper Beam Roll Forming Machine for Car Bumper Beam

PRODUCTION PARAMETER

No	Items	Specification
1	Model	SART-C89
2	Coil OD	1300 mm
3	Coil ID	450-530mm
4	Coil Thickness	0.8-1.2mm
5	Carrying Weight	3 ton
6	Forming Passes	8 dots
7	Production Speed	0-15m/min
8	Machine Power	15KW
9	Cover Space	1200020001800mm

MACHINE COMPONENTS

No	Items Name	Specifications
1	Decoiler	Single head mode, single support Coil ID: Ф508 Coil OD: Ф1300mm Strips width: 1450 mm Max. weight: ≤10000 kg

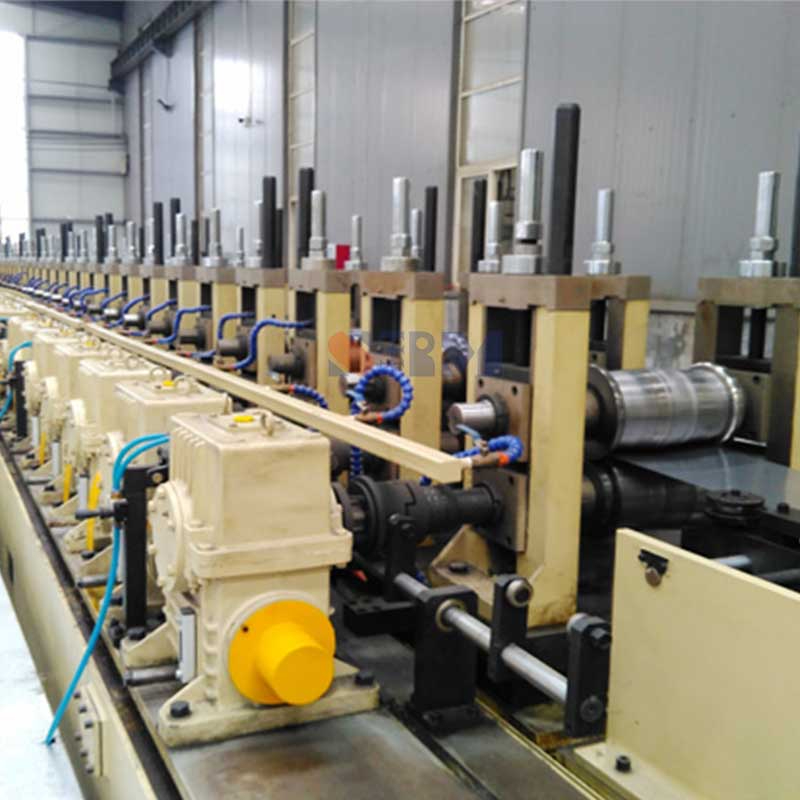

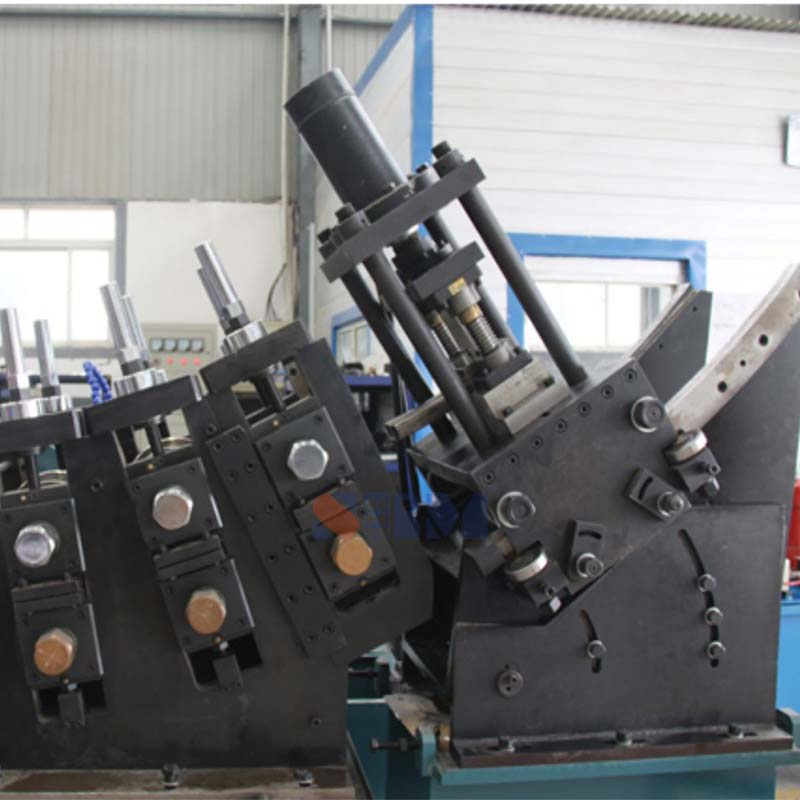

2	Roll Forming Machine	Structure: the forming unit is driven by motor reducer chain Forming stations:36 stations Forming machine shaft dia:φ95mm Motor power: 22kwX2 Max.: 15m/min
3	Hydraulic Cutting	The cutter mode adopts blanking shearing Blade material :Cr12MoV (hardness after quenching HRC58~62) Parameter :cutting accuracy:±1.5mm
4	Electrical Control Cabinet	Main electrical components: PLC: Mitsubishi Inverter: delta Touch screen: veron (Taiwan, China) Low-voltage electrical appliances: Schneide (France) Encoder: Omron (Japan)
5	Hydraulic System	Hydraulic system USES filter, the cleanliness of oil to ensure 6-8 grade
6	Run-out Table	Size:31.20.6m Adjustable Height

Description of Machine component

Material	Pregalvanized GI and CR
Yield strength of raw materials	235Mpa
Tensile strength of raw materials	550Mpa
Coil OD	≤Ф1300 mm
Coil ID	Ф508mm
Strip width	≤100mm
Strip thickness	≤1~2.25mm
Single roll weight	≤1000 kg
