High Precision Cable Tray Roll Forming Machine

Automatic Customized Quality Full Automatic Production Line Cable Tray Roll Forming Machine

This production line is mainly composed by following parts:

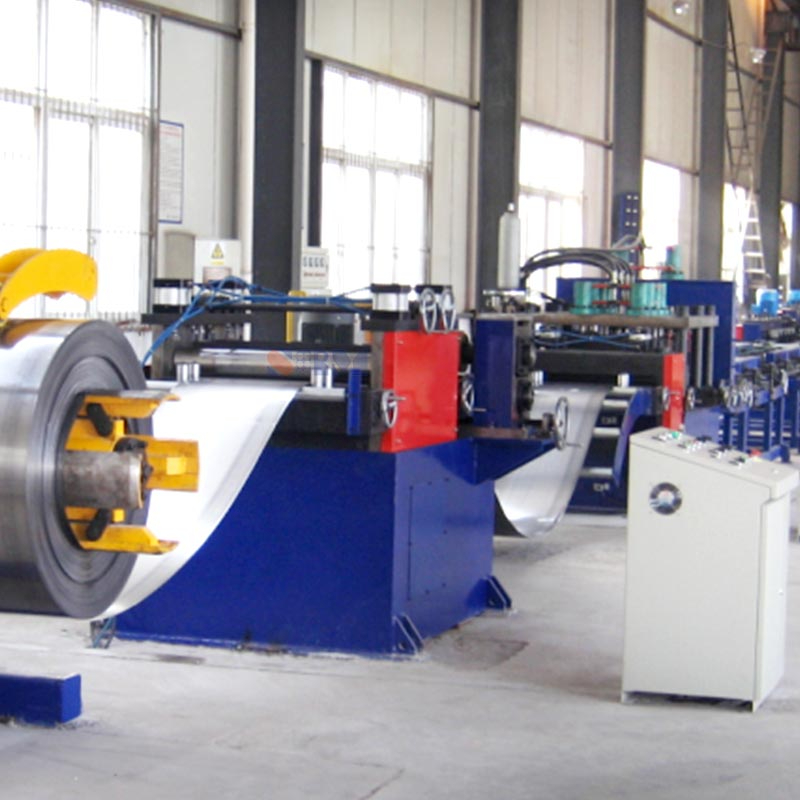

1. Uncoiler. Single support,four-bar tension structure, tension force comes from hydraulic cylinder, adjustment is fast and reliable.

2. Leveler. It adopts 7 rollers for leveling, 2 pairs of guide rollers, feed rollers are pneumatically clamped, frequency conversion speed regulation, switch control.

3. Looper ( Storage Material) Used to buffer the speed mismatch between the unwinding and leveling and the punching machine, and correct the deviation;

4. Servo Feeder. The sheet is fed in according to the actual step length required for punching, and multiple sets of feeding parameters can be set at one time, which is convenient and quick

5. Multi-stations Punching&Cutting Unit. It adopts liquid four-column press mode, which is economical, applicable and fast. The punching machine has a 6-station punching mode and contains 3 to 4 sets of die sets, which can continuously punch out multiple types of holes.

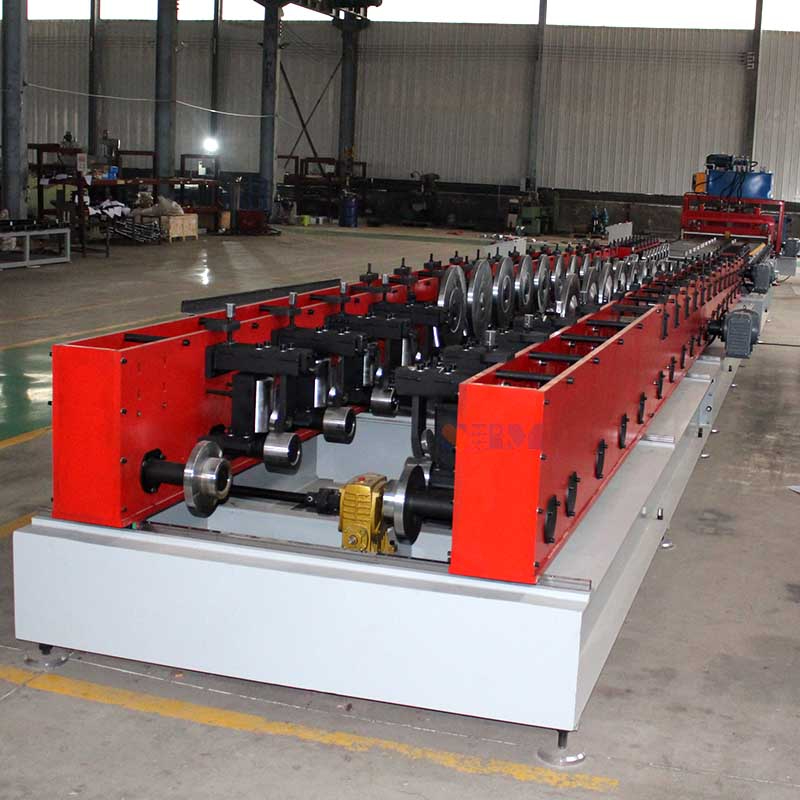

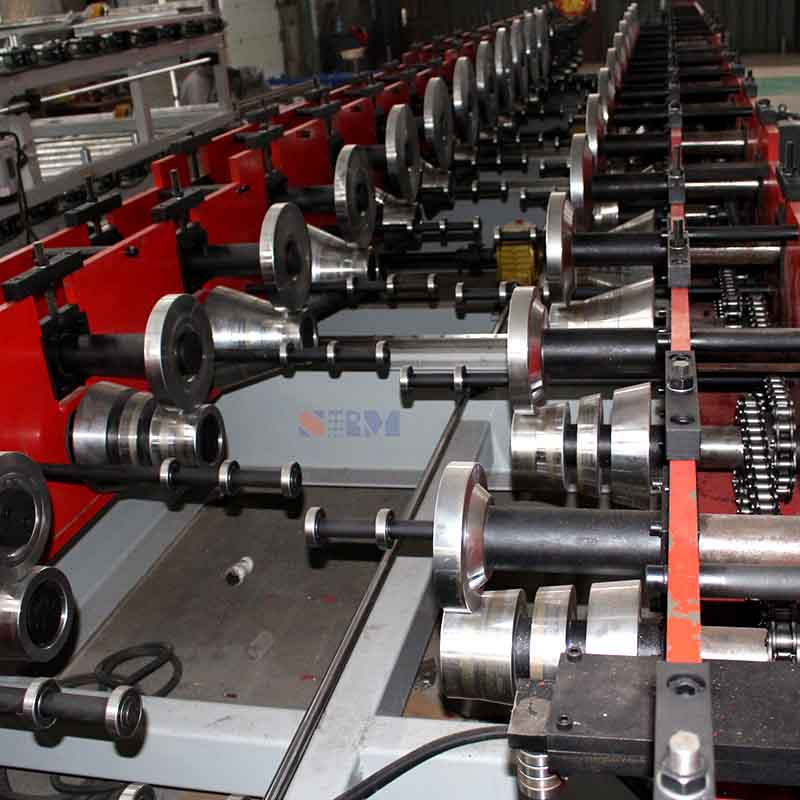

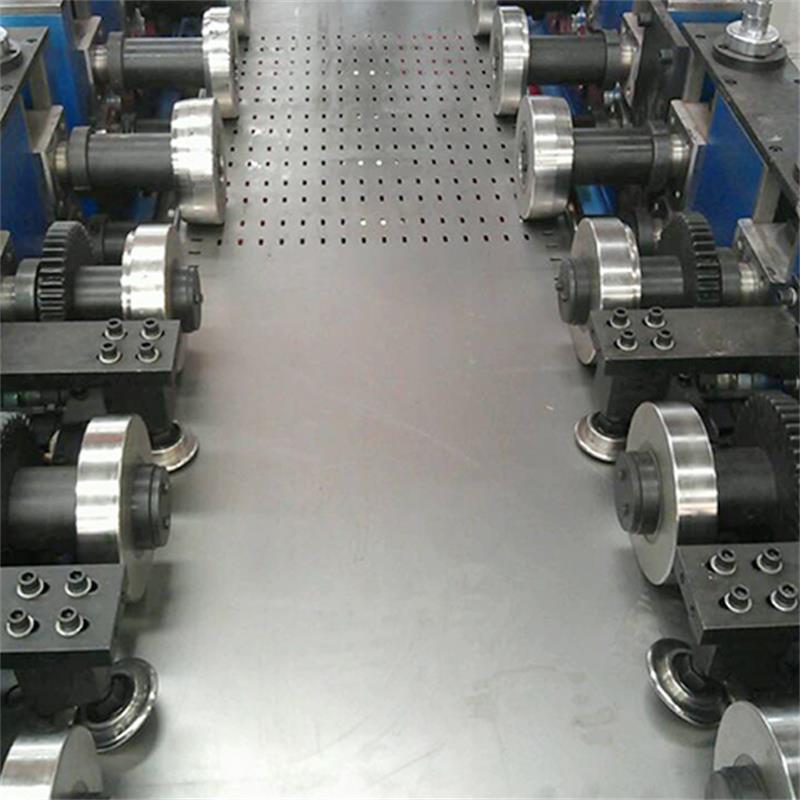

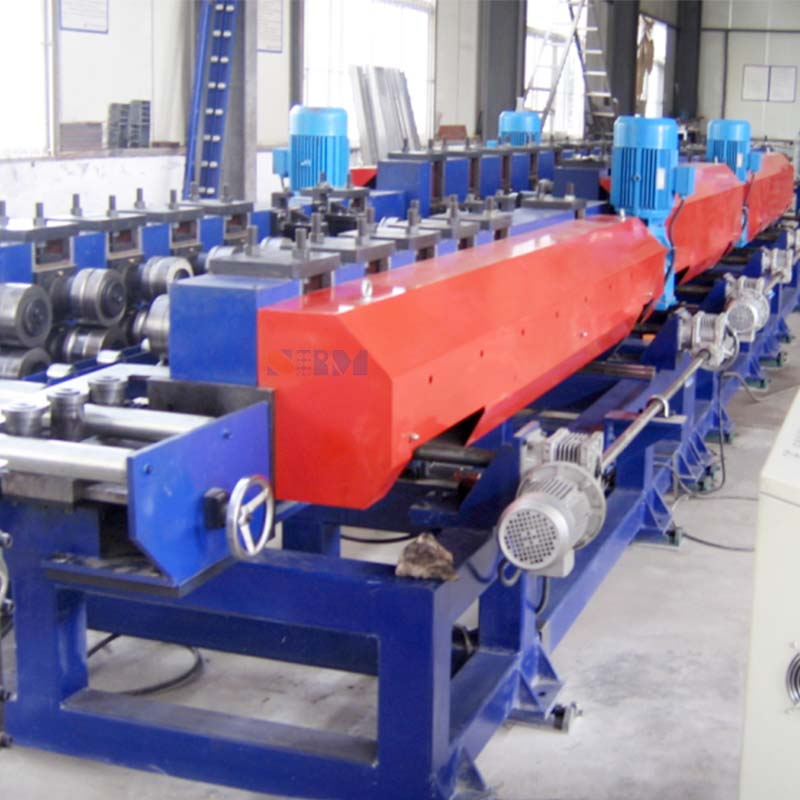

6. Cantilever adjustable forming machine . The forming unit adopts the cantilever forming machine mode. Motor, reducer, spiral bevel gear drive.When producing products with different bottom widths and waist heights, you only need to set the parameters on the touch screen, which is convenient, fast and reliable.
cable tray roll forming machine

Product Parameters:

No	*Model: SART-12502.5**	Specification
1	Material	CR/HR/G. I steel
2	Coil OD	Ф1200 mm
3	Coil ID	Ф508mm
4	Strips width	<1250mm
5	Strips Thickness	0.5~2.5mm
6	Cable Tray Width	100~800mm
7	Cable Tray Height	50~200mm
8	Coils weight	≤10000 kg
9	Electrical power	415V,50Hz,3phase
10	Line Speed	5~15m/min

MAIN COMPONENTS LIST

No	Items	Brand
1	PLC	Mitsubishi(Japan)
2	Servo Controller	Yaskawa(Japan)
3	Main Motor	Siemens Baid
4	Frequency converter	delta (Taiwan)
5	Touch screen	weilun(china)
6	Low-voltage components	Schneider(France)
7	Encoder	Schneider(France)

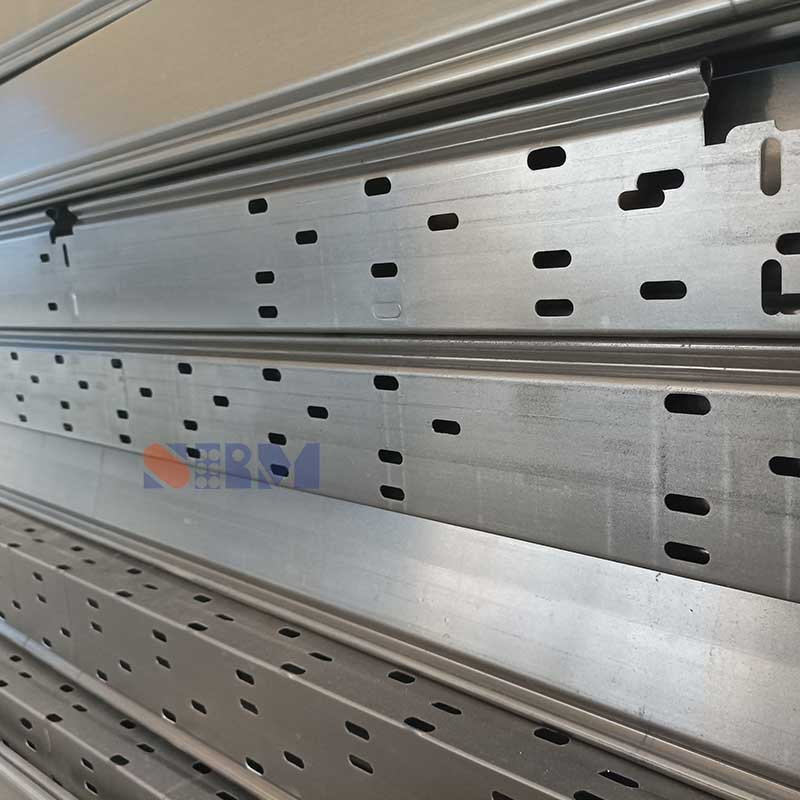

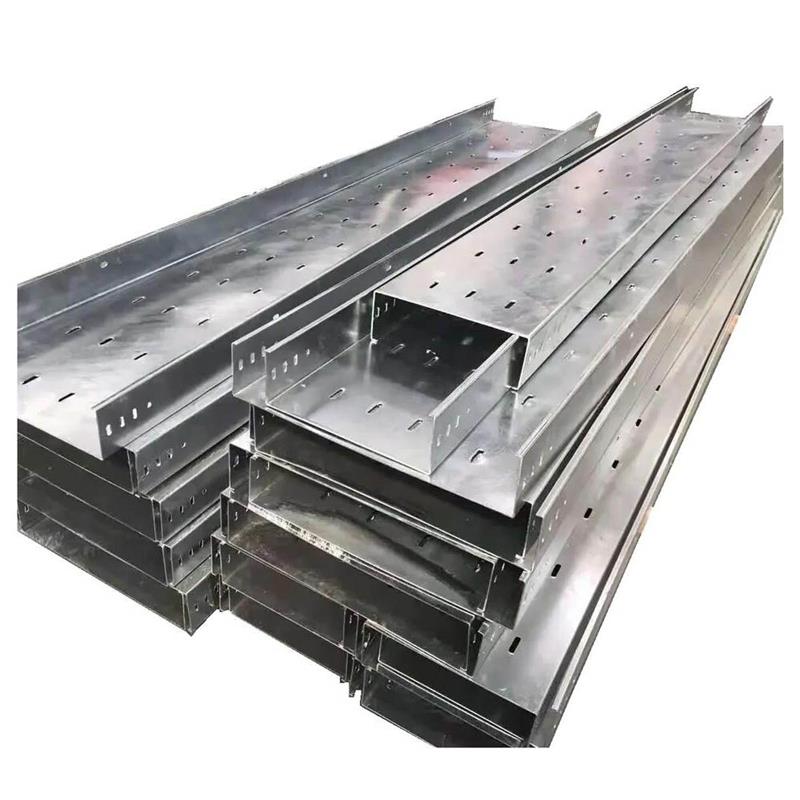

Workpiece Show:

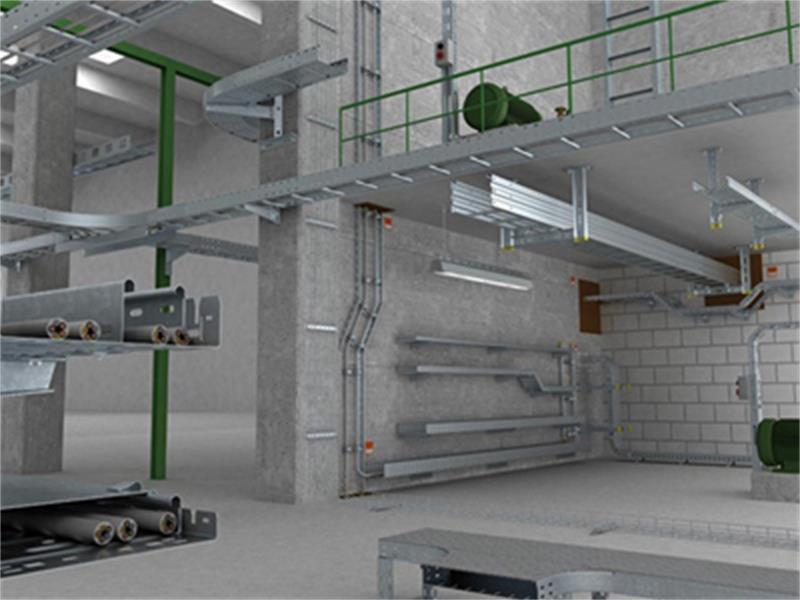

Machine Application:

This cable tray production line is a specially equipment for cable tray roll forming,also can finish the production of its cover plate, which widely applicable in power transmission, machinery and equipment, commercial buildings and other facilities, including computer rooms, parking lots, data centers, offices, Internet service providers, hospitals, schools/universities, airports and factories, etc
