Highway Guardrail Thrie-Beam Crash Barrier Roll Forming Machine

Raintech highway crash barrier roll forming machine have three types: Separated W beam roll forming machine, separated three waves crash barrier roll forming machine; combined two and three wave machine .  We have many successful cases for export highway guardrail plate roll forming machine and C post roll forming .The punching machine is equipped with two complete sets of punching & cutting moulds .

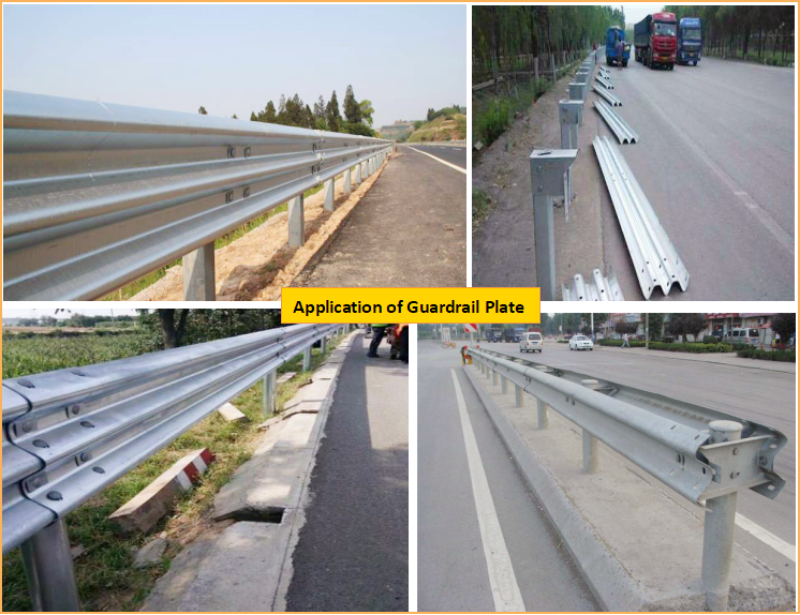

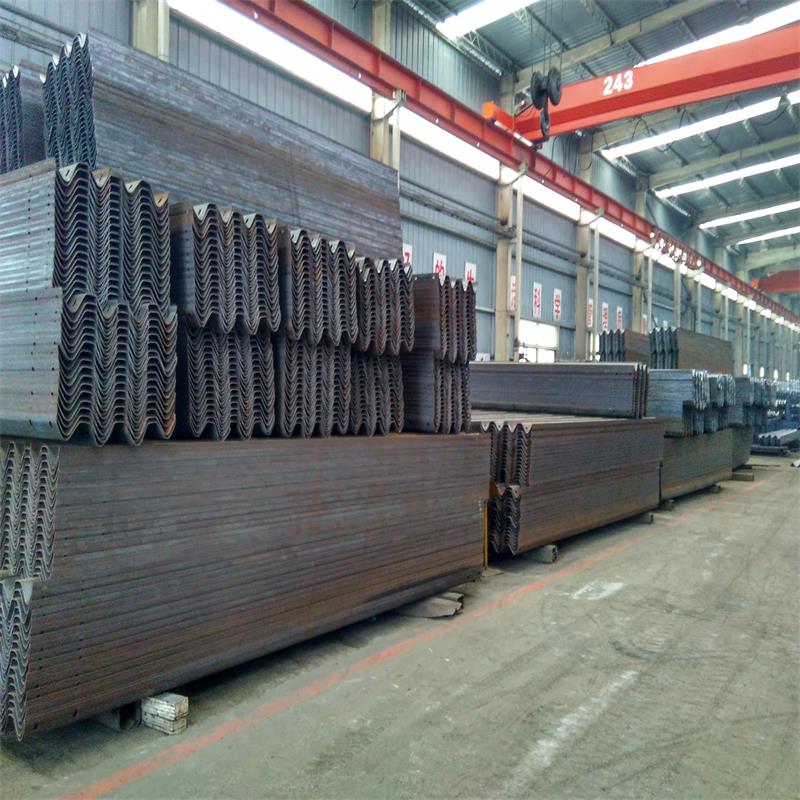

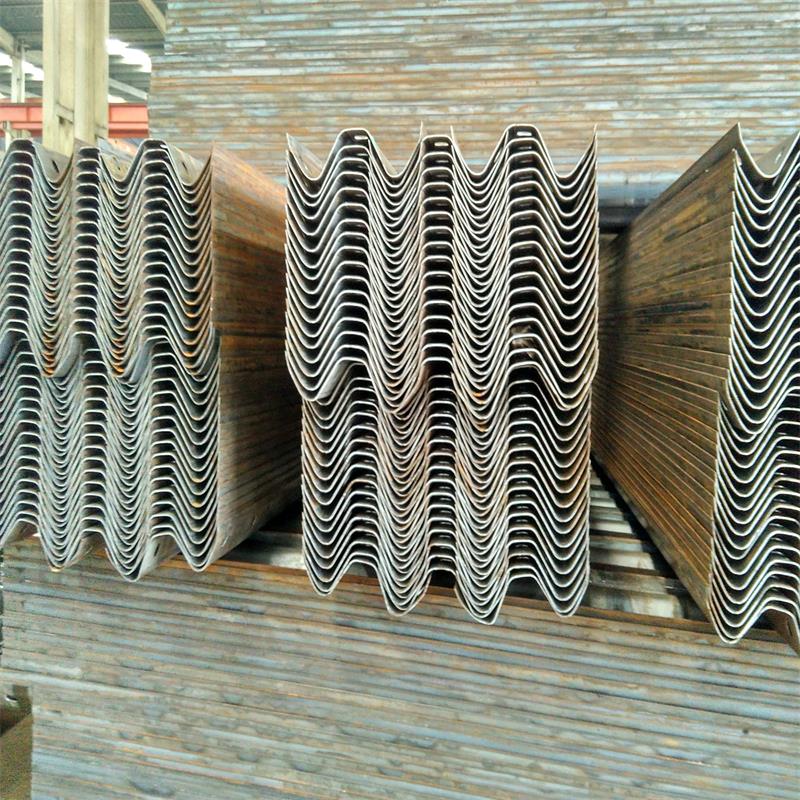

Three-wave (beam) guardrail plate is equipped with a set of punching &Cutting mould, Can finish the punching 28 holes at end the guardrail and cutting in one time.
The specific mold specifications shall be confirmed according to the punch drawing signed and confirmed by the buyer and the seller

Working Process:

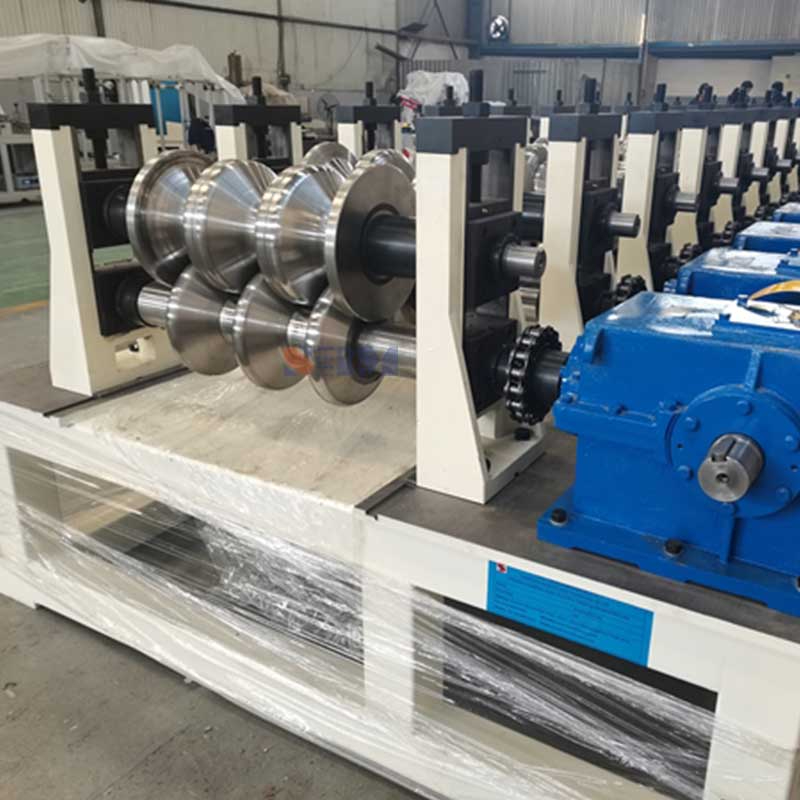

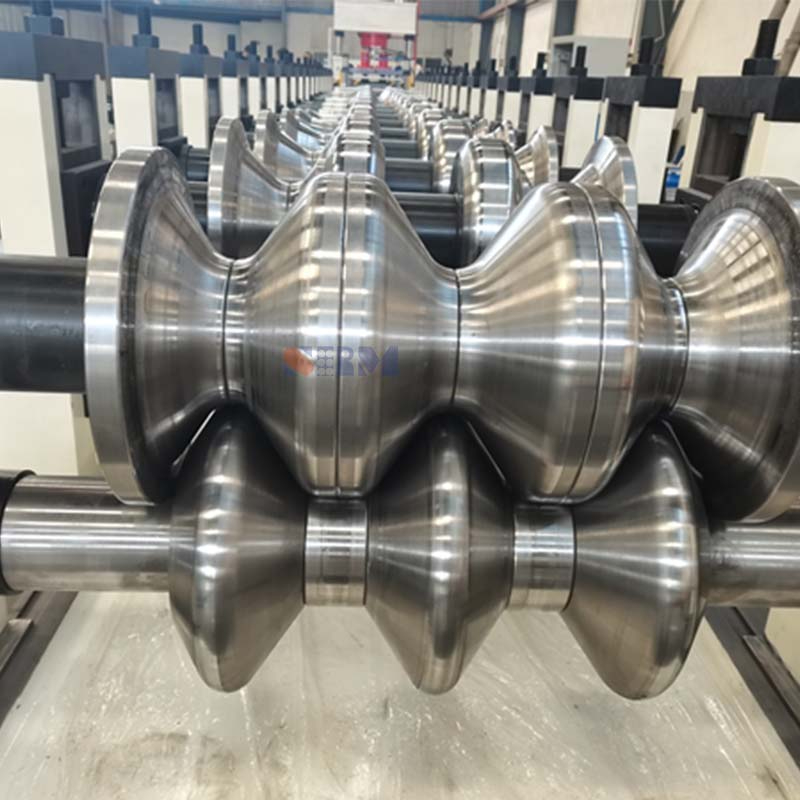

Uncoiling----- leveling primer ----looper (storage) ----servo leveling feeding ----400T punching and cutting machine + punching and reinforced hole press (three stations) -----conveying roller -----cold roll forming main process----finished material
Basic Structure：

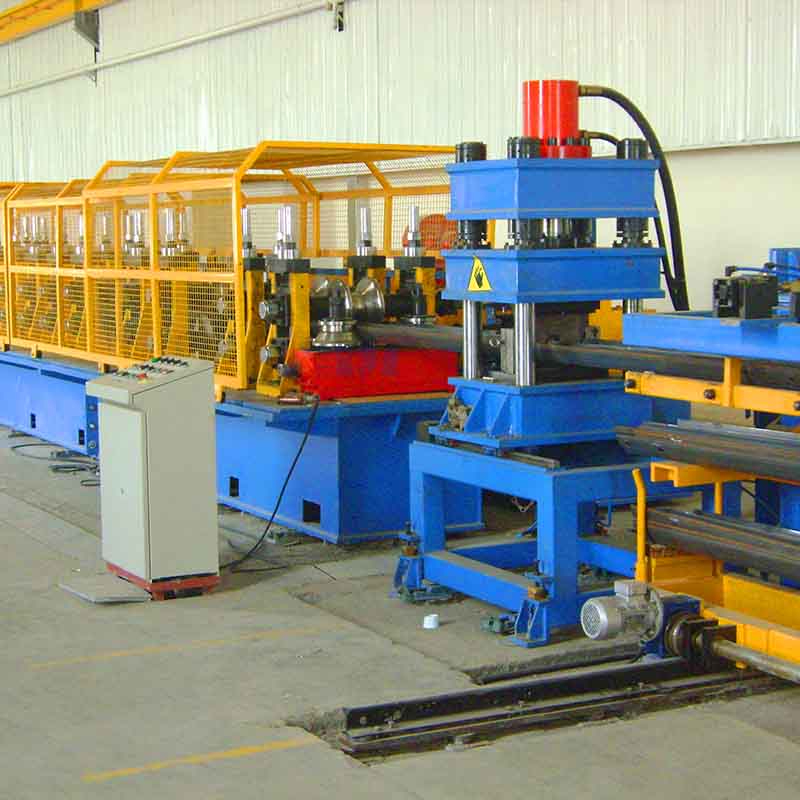

Adopt hyraulic four-column press mode, economical and applicable, the speed of fast punching distance can be adjusted in the horizontal direction of the plate, and the punching distance can be changed through the electrical control system

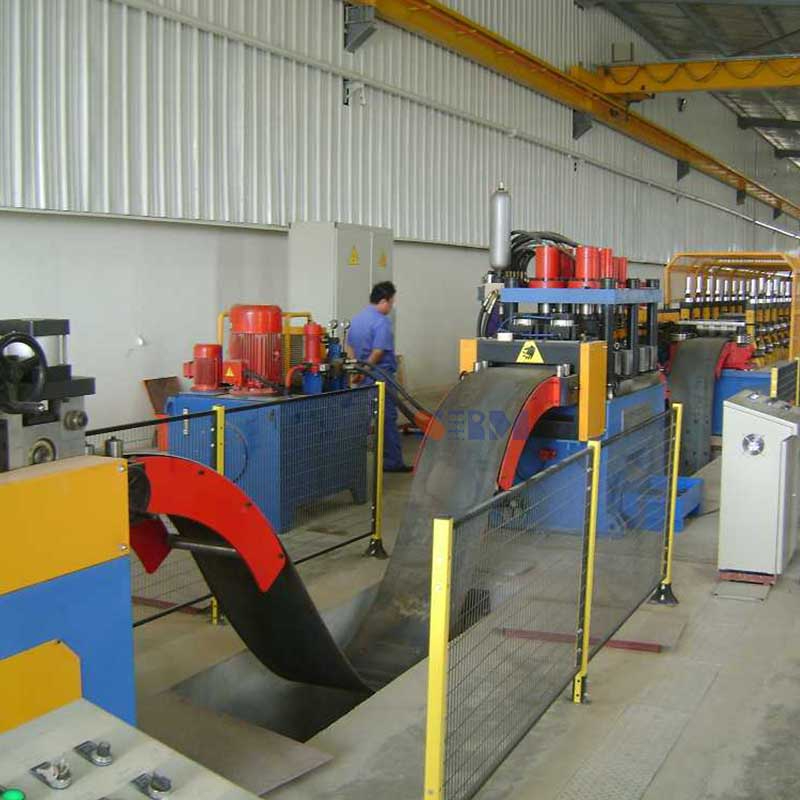

Auto Decoiler:
The machine is single support mode, motor driven uncoiler material shaft to release the material volume, hydraulic power drive uncoiler material shaft tensioning device, the material volume is fixed on the uncoiler material shaft,the tensioning structure is wedge type,more stable and reliable working condition.
Loading Trolley:
The feeding trolley is of welded structure, and the motor driven trolley moves longitudinally on the ground facing the feeding shaft of the uncoiler, The motor driven trolley moves longitudinally on the ground facing the material shaft of the uncoiler;The coil surface supporting side of the trolley which driven by hydraulic cylinder moves up and down to place the coil on the shaft of the uncoiler
The supporting surface for the coil on the feeding trolley is v-shaped structure, and the surface is equipped with an anti-skid plate to avoid the coils creep down during the moving
Feeding trolley motor power:≈2.2Kw(according to the final design)
The feeding trolley contains two moving guide rails on which the trolley will be moved

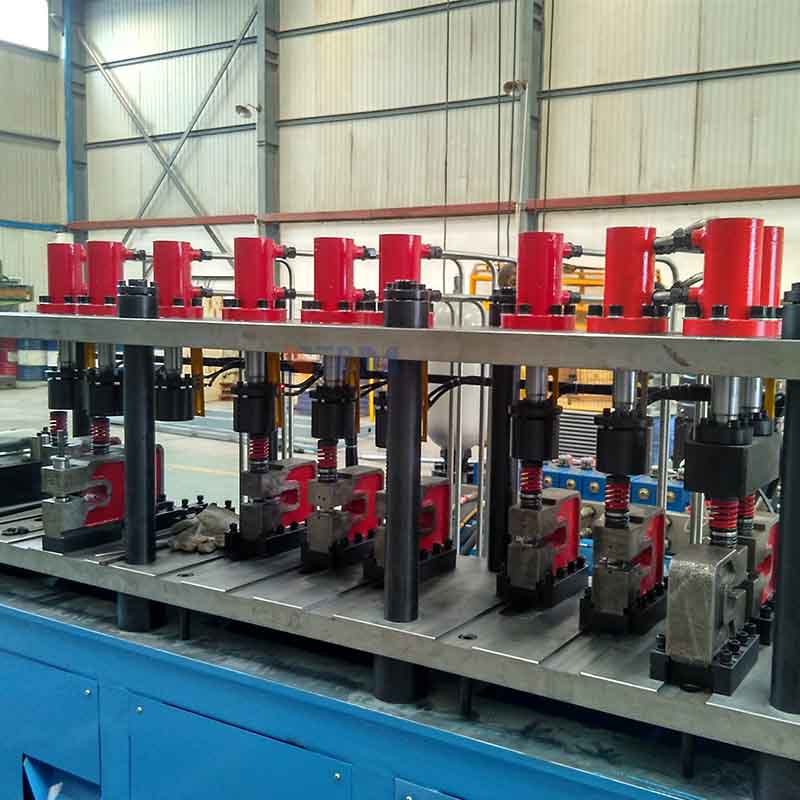

Adopt high speed die, produce different shape punch by using different station die (the punch die should be changed when the plate is changed), punch position can be adjusted separately, with reasonable structure, long service life and convenient adjustment

The hydraulic system of this punching machine is specially developed for multi-position punching machine. The hydraulic press adopts the control mode of pump accumulatoIt adopts special hydraulic control module, has the characteristics of fast blanking speed and low noise, and is equipped with a cooler for heat dissipation, to meet the needs of continuous production(This hydraulic system has been successfully used in many production lines)
