High Efficiency Two Highway Guardrails Roll forminh machine line

Product Description



Product Parameters

MAIN PARAMETERS

Material	Cold rolled mild steel
Raw material yield strength	235~355Mpa
Tensile strength of raw materials	420~550Mpa
Coils OD	≤Ф1600 mm
Coils ID	Ф508mm
Strips width	≤750mm
Strips thickness	2.3~3mm
Coils weight	≤10000 kg
Line speed	4 pcs/min(Length4320mm)

MAIN CONFIGURATION OF COMPONENTS

PLC	Mitsubishi, Japan
Servo system	Yaskawa , Japan
Transducer	Delta (Taiwan)
Touch Screen	WEINVIEW(Taiwan)
DC speed controller	Eurotherm (USA)
Encoder	Omron



Product Detail



WORKING PROCESS

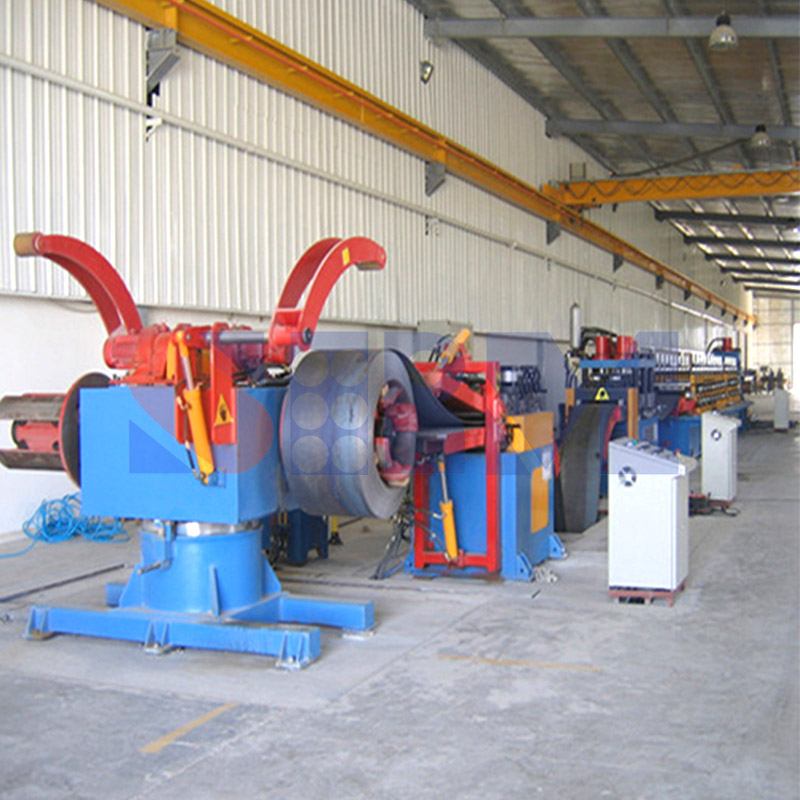

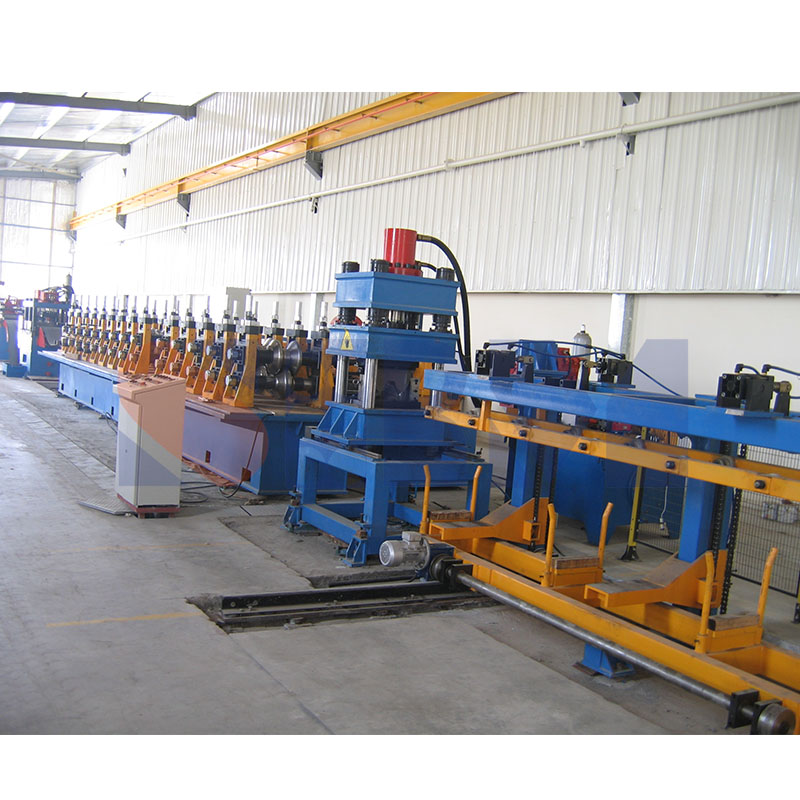

Uncoiling----- servo leveling feeding----looper(storage) ----400T multi-punching -----conveying roller -----roll forming---cutting ---finished material discharging

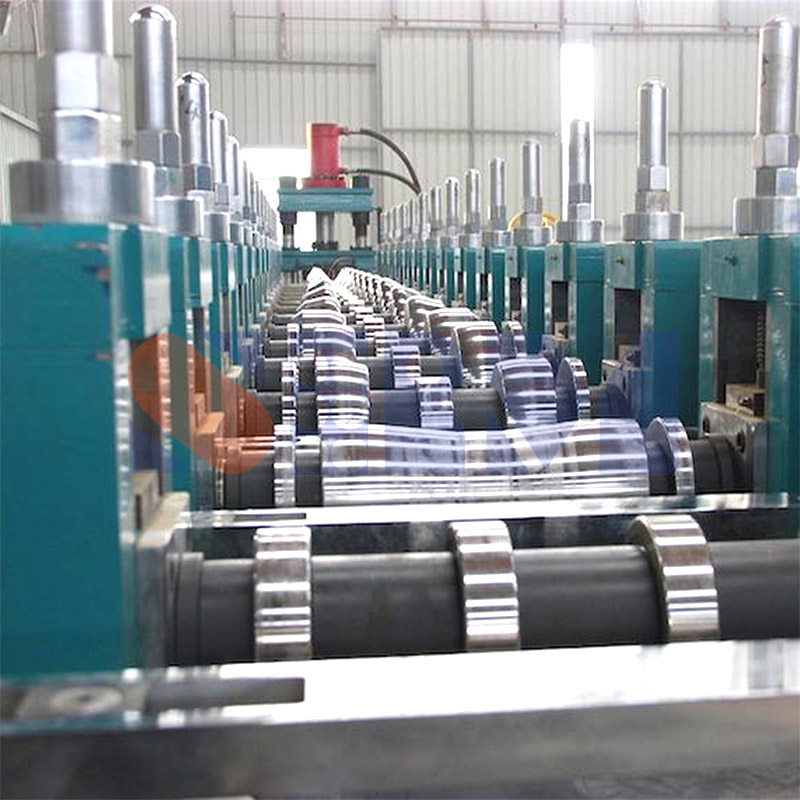

1.We adopts individual archway stands for rollers station, more strong and rigidity structure than other suppliers in china.
2.Individual gearbox for each archway rollers set, to assure the precision of the profile.
3.All of the machine main body and parts are quenched, with higher hardness(HRC58-62) and wear resistance, while other suppliers only rough steel welded.

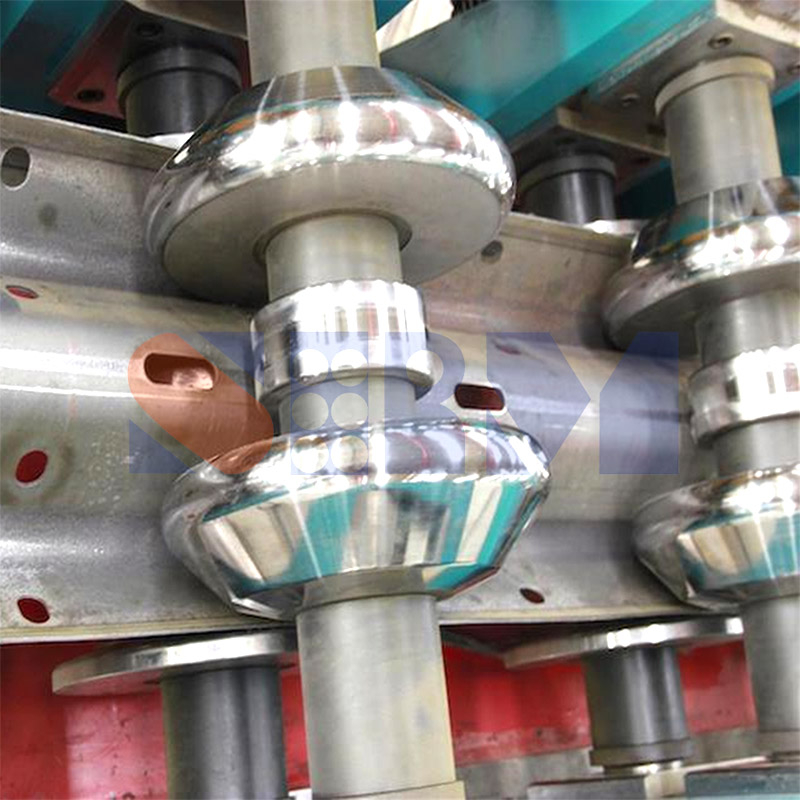

4.The rollers material is American D2 and D3 standards, with long service life and low maintenance cost.
5.Professional Germany roller design software-Copra.
6.Our price is most reasonable based on the top quality in this field.
7.Long machine life, all of our machines can be used stable performance for more than 10-15 year, while other small and low
quality supplier's machine only can be used for 1-2 years.

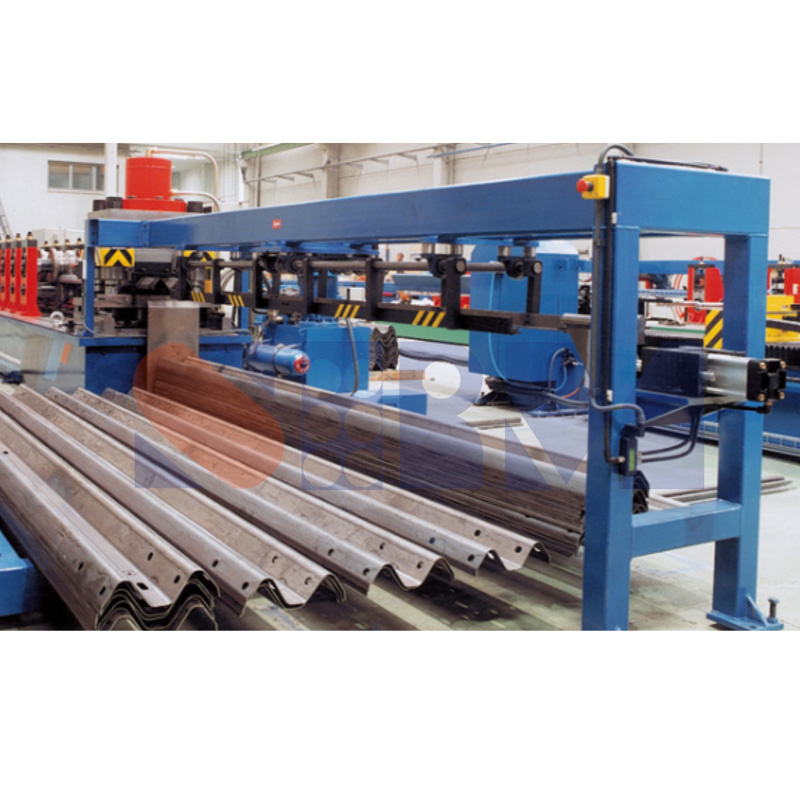

WORKPIECE PICTURE
