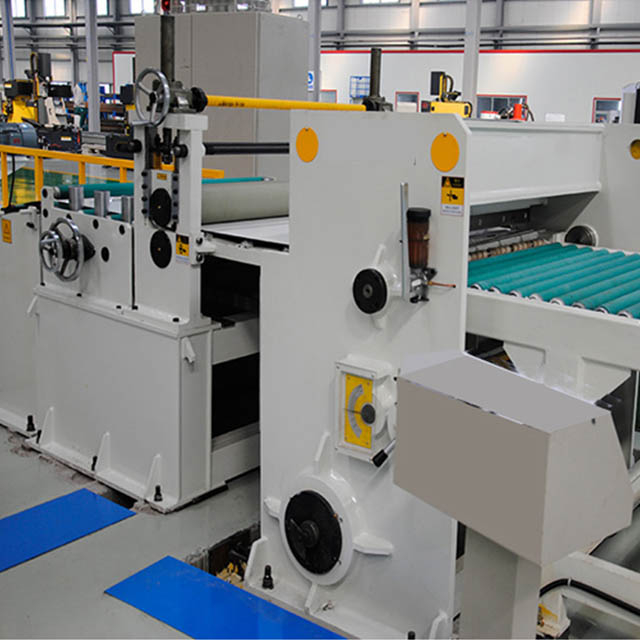

High Configuration Steel Coil Levelling Shear Line Cut-to-Length Line

Brief Introduction of carbon steel coil processing line:

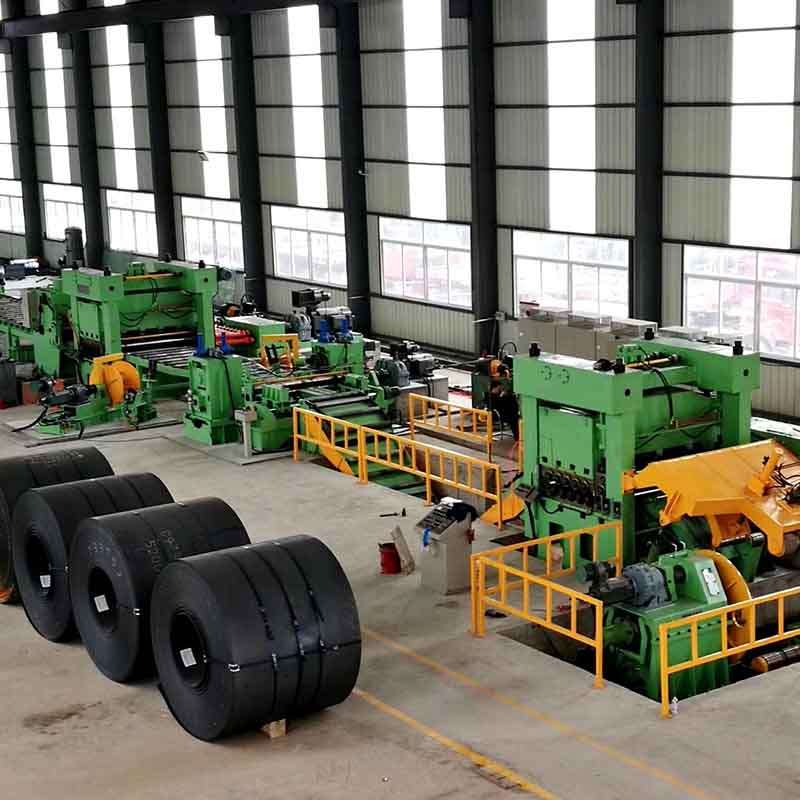

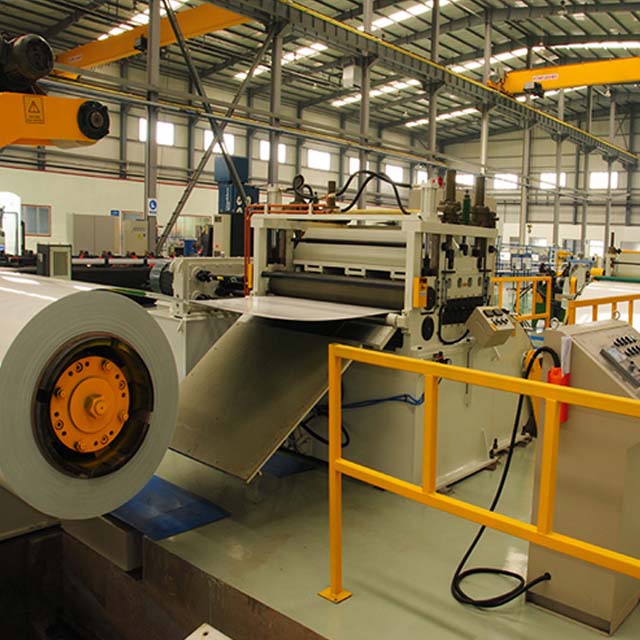

A cut to length line is generally used for jobs like uncoiling, straightening, measuring, cross-cutting to length and stacking of various materials such as cold or hot rolling carbon steel, tinplate, stainless steel, and other kinds of metal with coated surfaces.

Features of High Speed Cut to Length Line :

1. high speed cut to length line , speed can be 80m/min.

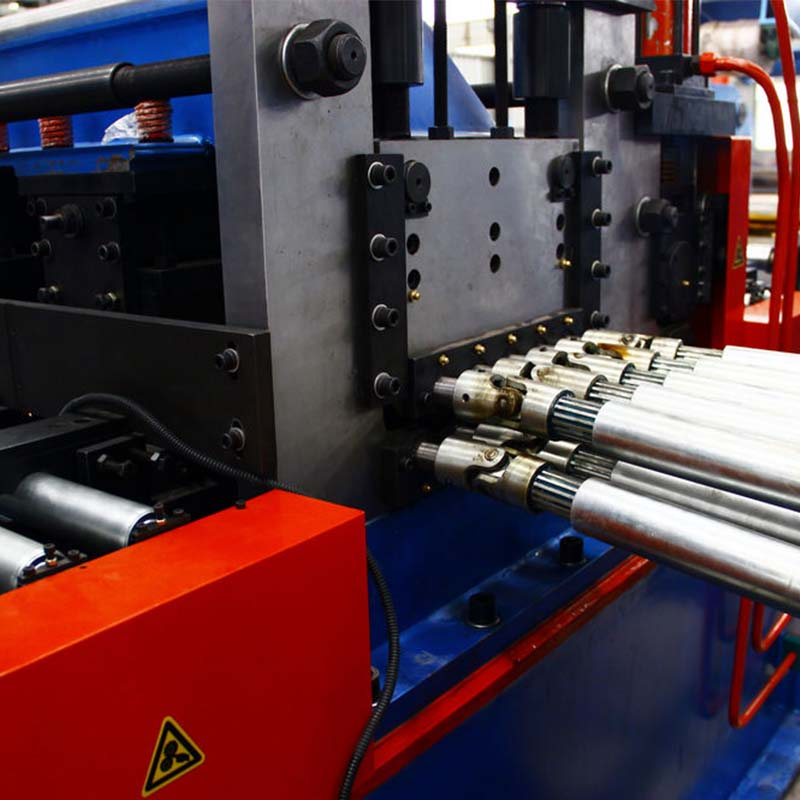

2. High leveling precision
3. It has a hard chrome plated surface and is durable and abrasion resistant.
4. It is used together with a hydraulic shear or an air-clutch shear to carry out fast shearing and convenient clearance adjustment.
5. raw material : CR HR, PPGI , SS

Product Parameters:

Model	Coil thickness(mm)	Coil width(mm)	cut tolerance(mm)	Line speed(max)(m/min)	Shear number(max)(spm)	Coil weight(ton)
RCL-2X1300	0.2-2	300-1300	+/- 0.3	60	50	7/15
RCL-2X1600	0.2-2	400-1600	+/- 0.3	60	50	7/15
RCL-2X1850	0.2-2	900-1850	+/- 0.3	50	40	20
RCL-3X1600	0.5-3	400-1600	+/- 0.3	50	40	15
RCL-3X1850	0.5-3	900-1850	+/- 0.3	50	40	20
RCL-3X2000	0.5-3	900-2000	+/- 0.3	45	40	30
RCL-6X1600	1-6	600-1600	+/- 1	25	20	20
RCL-6X2000	1-6	900-2000	+/- 1	25	20	30
RCL-8X2000	2-8	900-2000	+/- 1	20	20	30
RCL-12X2000	3-12	900-2000	+/- 1.5	20	10	30
RCL-16X2000	4-16	900-2000	+/- 2	15	8	30
